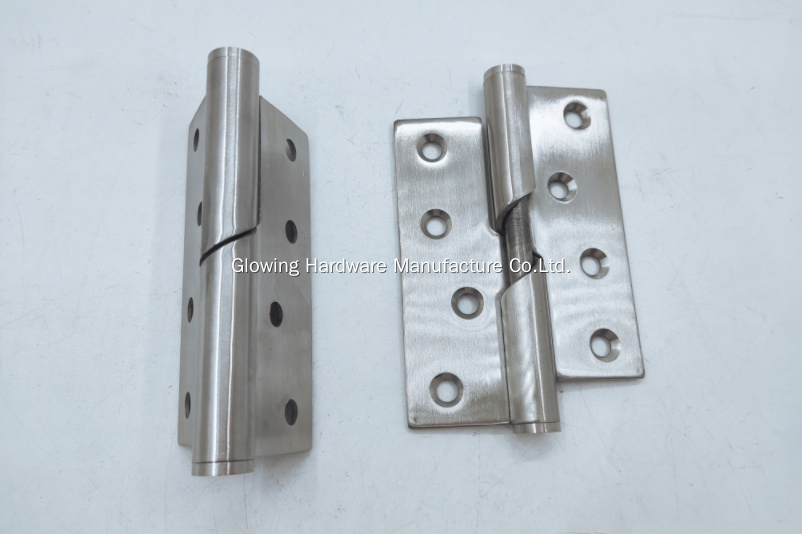

In the architectural hardware industry, hinges are the core components connecting the door leaf and door frame. Their selection directly impacts the door's lifespan, safety, and overall aesthetics. As a hardware manufacturer with a professional design team, Glowing Industry, drawing on years of experience in stainless steel hinge manufacturing, provides this professional selection guide to help you choose the most suitable hinge solution for different application scenarios.
1. Material Selection and Performance Comparison
The material selection of stainless steel hinges is critical to ensuring long-term performance. Mainstream materials on the market include:
304 stainless steel: Contains 18% chromium and 8% nickel, offering excellent corrosion resistance and formability. Our test data shows that 304 stainless steel hinges remain rust-free for 72 hours in a standard salt spray test, making them suitable for most indoor environments and general outdoor use.
316 stainless steel: 2% molybdenum is added to 304 stainless steel, significantly improving resistance to chloride ion corrosion. It is particularly suitable for highly corrosive environments such as coastal areas, chemical plants, and swimming pools. Our 316 hinges perform exceptionally well in salt spray tests, remaining rust-free for over 120 hours.
201 stainless steel: An economical choice, but with poor corrosion resistance, we only recommend it for short-term use in dry rooms.
2. Load-bearing capacity calculation and distribution
Selecting the load-bearing capacity of hinges requires consideration of several factors:
| Door Weight (kg) | Recommended Number Of Hinges | Minimum Load Requirement For A Single Hinge |
| <20kg | 2 | 15–20kg |
| 20-45kg | 3 | ≥15kg |
| 45-70kg | 3-4 | 25–30kg |
| >70kg | More | Safety Factor Of Door Weight/Number × 2 |
Our engineering team has developed a professional load-bearing calculation tool that provides precise load-bearing recommendations based on door material (solid wood, glass, metal, etc.), size, and frequency of use.
3. Dimensions and Mechanical Analysis
Hinge size directly impacts mechanical performance:
Height Selection: 4" (100mm) is suitable for light-duty interior doors; 5" (125mm) is a common size; 6" (150mm) and above are used for heavy-duty doors. Our testing shows that a 20% increase in height improves deformation resistance by approximately 35%.
Blade Thickness: Standard thickness is 2.5-3mm, and can reach 4mm for heavy-duty applications. We use finite element analysis to optimize the blade structure, reducing weight while maintaining strength.
1. High-end Commercial Space Applications
For high-end venues such as office buildings and hotels, we recommend:
Concealed Hinge System: Provides a completely invisible door connection solution. Our patented design allows ±3mm three-dimensional adjustment to ensure perfect alignment.
Buffering Hinge: An integrated hydraulic buffer system enables automatic, slow closing at opening angles of 70-110 degrees, with a noise level below 25dB.
Dedicated Fire Door Hinges: UL-certified, capable of maintaining functionality at temperatures of 800°C for over 90 minutes. A specially designed expansion seal automatically seals the shaft hole at high temperatures.
2. Industrial and Special Environment Solutions
For harsh industrial environments, we have developed the following:
Corrosion-Resistant Series: Utilizing 316L ultra-low carbon stainless steel with a special surface passivation treatment, salt spray resistance is increased by 300%.
Sanitary Hinges: Seamless design with a surface roughness of Ra < 0.8μm, compliant with FDA and EHEDG standards, suitable for the food and pharmaceutical industries.
Explosion-Proof Hinges: Made of military-grade materials, IP68 certified, and able to withstand extreme temperatures and shock.
1. Professional Design Support Services
Our engineering team provides:
3D Simulation Analysis: Use SolidWorks to perform force simulations and optimize hinge layout.
Dynamic Test Report: Provides hinge performance data after 1 million cycles of opening and closing.
Material Compatibility Consulting: Avoid electrochemical corrosion caused by contact between dissimilar metals.
2. Installation Technical Key Points
Professional installation directly impacts hinge performance:
Positioning Accuracy: We recommend using a laser locator to ensure hinge axis deviation is less than 0.5mm.
Securing Methods:
Solid Wood Doors: Pre-drilled Holes + Stainless Steel Self-Tapping Screws
Metal Doors: Through Bolts + Locknuts
Glass Doors: Specialized Chemical Anchor
Commissioning Process:
Recheck tightness 24 hours after initial installation
Use a torque wrench to ensure screws meet the specified torque
Final adjustment after 50 full opening and closing cycles
1. Customized production capabilities
Dimension customization: We can produce non-standard hinges with a height of 30-300mm, with a tolerance of ±0.05mm.
Surface treatment: We provide more than 20 surface treatment options, including:
Physical treatment: brushed, mirror, sandblasted
Chemical treatment: black nickel, bronze oxidation, PVD coating
Special treatment: antibacterial coating, self-cleaning surface
Function integration: We can integrate damping, positioning, sensing and other functional modules according to needs.
Customization of special requirements: If you have special requirements, you can consult us first and we will try our best to meet your requirements.
2. Global Service Network
Technical Response: Our multilingual team of engineers provides 24-hour technical support.
Logistics Support: Guaranteed 30-day delivery to major ports worldwide, with specialized packaging to meet ocean freight requirements.
Choosing Glowing Industry's Stainless Steel Door Hinges means you're getting more than just a piece of hardware; you're getting a complete door system solution. Our dedicated team is ready to provide comprehensive technical support, from selection to installation, to ensure optimal Door Hardware performance for your project. If you have any questions, please feel free to contact us!
