A Mortise Lock is one of the most advanced and reliable types of door locking mechanisms used in modern architecture. It combines a traditional sense of security with precise engineering and long-term durability. The term “mortise” refers to the cavity cut into the edge of a door to house the internal lock body, which contains a latch, bolt, and various mechanical components. Because the entire lock is installed within the door rather than on its surface, it provides both strong protection and a clean, elegant appearance.
Our mortise locks are carefully engineered with stainless steel, brass, or zinc alloy materials to ensure smooth operation and long-lasting performance. Whether used in homes, offices, hotels, or public buildings, the mortise lock’s working principle remains the same.

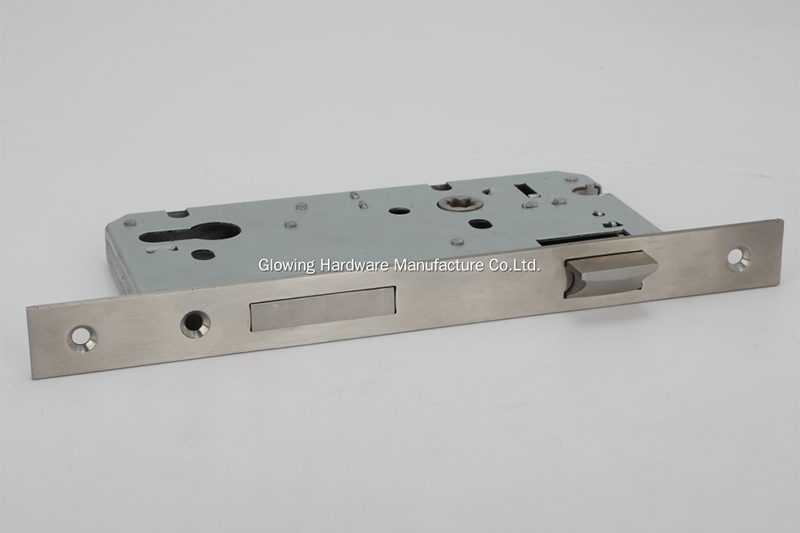

A mortise lock is a heavy-duty door lock installed inside a rectangular cutout (the mortise) on the door edge. It’s composed of several key components working together to control access and secure the door. Unlike a standard cylindrical lock, which is mounted through holes in the door face, a mortise lock’s mechanism is hidden inside the wood or metal, providing greater strength and better aesthetics.
Lock Body (Shell): The main housing containing the latch, bolt, and internal levers. Usually made from steel or electrolytic steel for structural stability.
Latch Bolt: A spring-loaded bolt that retracts when the handle is turned, allowing the door to open.
Deadbolt: A solid metal bar that extends fully into the door frame when locked, preventing forced entry.
Spindle and Follower: A square or 8mm hole that connects the handle to the latch mechanism.
Front Plate: A metal plate visible on the door edge, usually made of stainless steel with a polished or satin finish.
Cylinder (Optional): In key-operated models, a euro or oval cylinder controls the locking and unlocking of the bolt.
Mortise locks come in various configurations depending on function—privacy locks, passage locks, entry locks, or double-cylinder locks—but they all share the same fundamental operating principle: the integration of latch and bolt inside the door body for superior stability.
To understand how a mortise lock works, imagine it as a sequence of mechanical movements that translate hand motion into secure locking or unlocking. The process involves both the handle operation and the key mechanism.
When you push down or rotate the door handle, the spindle connected to the handle passes through the follower — an internal square-shaped component inside the lock body. Turning the handle causes the follower to rotate, which in turn retracts the latch bolt inside the lock. This action releases the door from the strike plate, allowing it to open.
When you let go of the handle, a spring within the mortise lock pushes the latch bolt back out. The latch automatically catches into the strike plate again when the door closes, holding the door shut without locking it.
Most mortise locks include a deadbolt operated by a key or thumbturn. When the key is turned:
It engages a cam mechanism that moves the bolt horizontally out of the lock body.
The bolt extends into the strike plate’s cavity in the door frame, securing the door in place.
Turning the key in the opposite direction retracts the bolt, allowing the door to open.
This dual-action system — one for latching (handle) and another for locking (key) — provides both convenience and security. The mechanical precision of this interaction ensures the door feels solid and smooth every time it’s used.
Internally, the mortise lock operates with gears, springs, and levers that convert rotational motion into linear motion. The latch and deadbolt share a coordinated mechanism so that locking the deadbolt also prevents handle movement, securing the door entirely.
This complex yet seamless mechanism is what makes the mortise lock stronger and more sophisticated than ordinary locks. The design reduces wear, distributes force evenly, and provides long-term stability even under frequent use.
The mechanical design of mortise locks offers multiple benefits that make them suitable for both residential and commercial applications. Their strength, adaptability, and professional appearance distinguish them from conventional locks.
Mortise locks feature deep-set bolts that extend firmly into the door frame. This structural depth makes it much harder to force open or break compared with surface-mounted locks. The heavy steel or brass bolt resists cutting, prying, and impact.
Because all internal components are enclosed within a steel or brass shell, they are protected from moisture, dust, and wear. Even after years of use, the internal mechanism maintains its original precision and reliability.
The balance of springs and levers ensures that the door closes quietly without slamming. The latch slides effortlessly, and the lock engages with minimal noise — an important detail in hotels, offices, or homes that value acoustic comfort.
Mortise locks provide a minimalistic appearance. Since the mechanism is hidden inside the door, only the handles and faceplate are visible, maintaining a refined and uncluttered design.
A mortise lock can support multiple functions: simple passage for interior doors, privacy locks for bathrooms, or double-cylinder locks for secure entry doors. This adaptability allows it to fit nearly any architectural requirement.
Mortise locks are not limited to one type of environment; their design versatility allows them to perform well in both aesthetic and high-security settings.
In homes, mortise locks are most commonly found on main entrance doors, bedroom doors, and interior partitions. Homeowners value their reliability, quiet operation, and ability to match various handle styles and finishes.
For office spaces, retail stores, and institutions, mortise locks deliver professional-grade performance. They withstand frequent daily use while providing a strong locking mechanism that meets security regulations.
Hotels prefer mortise locks because they blend function and design. Many models can integrate with electronic card systems or privacy indicators, providing a seamless experience for guests and maintenance staff alike.
In schools, hospitals, or factories, mortise locks provide fire safety compliance, heavy-duty performance, and resistance to environmental stress. The use of corrosion-resistant materials like SS304 stainless steel makes them ideal for high-traffic and humid areas.
The quality of materials directly determines how well a mortise lock performs. Our locks are built using a combination of high-grade metals to guarantee both beauty and strength.
Lock Body / Shell: Made from electrolytic steel or solid steel for structural durability.
Bolt: Available in SS201, SS304, brass, or zinc alloy, providing corrosion resistance and smooth engagement.
Front Plate: Constructed from SS201 or SS304, with a 3mm thickness for solid fitting.
Follower and Spindle: 8mm stainless steel or brass for stable handle rotation and long-term reliability.
We offer both Satin Stainless Steel (SSS) and Polished Stainless Steel (PSS) finishes, ensuring the lock complements any modern or classic door style. Custom surface coatings such as matte black, antique bronze, or gold plating can also be provided upon request.
Our OEM and ODM customization services allow clients to adapt mortise locks for specific projects:
Adjustable backset sizes (40mm–70mm) and center distances (72mm/85mm).
Choice of round head or square head front plate design.
Custom engraved logos and packaging for brand differentiation.
Optional privacy or indicator functions for hotel and commercial use.
This flexibility ensures every mortise lock integrates perfectly with architectural requirements while maintaining mechanical excellence.
The continued popularity of mortise locks is no coincidence — it’s the result of centuries of refinement in lock engineering. The mechanism’s design represents a balance between mechanical sophistication, aesthetic simplicity, and long-term dependability.
A well-made mortise lock, when properly installed, can last decades with minimal maintenance. The precision of each internal part ensures smooth engagement and consistent feel, providing a sense of security and craftsmanship every time the door is used.
Because mortise locks combine both latch and bolt systems, they offer dual-layer protection — convenience for daily operation and security when locked. For fire-rated or emergency doors, they can also integrate with panic bars or access control systems without compromising performance.
Mortise locks are compatible with a wide range of handles, plates, and electronic accessories, making them ideal for any style—from minimal modern interiors to classic designs. Their concealed structure keeps the door surface clean and refined.
While the installation of a mortise lock requires more precision than a simple latch, the result is a superior product built for long-term use. It’s a small but critical investment that adds both value and safety to any building.
Mortise lock operates through a combination of interlocking mechanical components—handle, latch, bolt, and cylinder—each precisely engineered to function together within a concealed door cavity. When the handle is turned or the key is rotated, the mechanism translates these actions into smooth, controlled movement that either secures or releases the door.
This elegant balance of design and engineering makes the mortise lock a timeless solution for security and convenience. Whether installed in a residential entryway, an office door, or a hotel suite, a mortise lock represents the perfect harmony of safety, style, and reliability.
