Changing the cylinder in a door lock is a simple yet essential maintenance task that helps improve security, resolve key issues, or upgrade to a new locking system. The cylinder is the core component that controls access — when the key turns, it activates the internal mechanism to lock or unlock the door. Over time, you may need to replace the cylinder due to wear, lost keys, or an upgrade to higher security standards.
As a professional B2B manufacturer of Door Cylinders, we produce high-precision, durable locking cores suitable for residential, commercial, and hotel projects. In this guide, we’ll explain how to change the cylinder in a door lock correctly, what to look out for during installation, and why choosing a premium cylinder from our factory ensures lasting performance and safety.

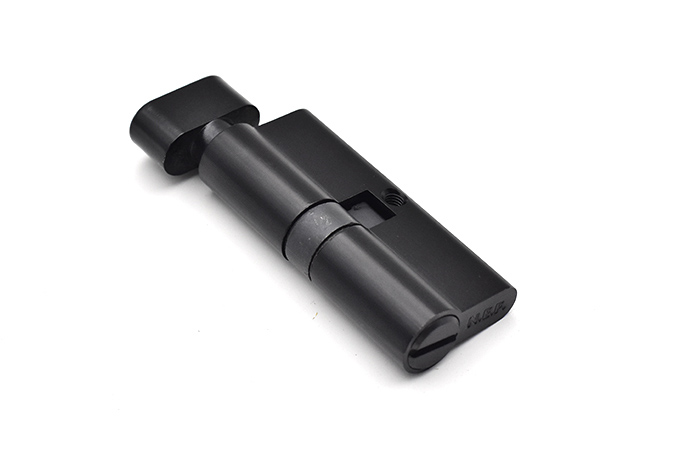

A door cylinder, also known as the lock core or Euro profile cylinder, is the removable component of a lock where the key is inserted. It controls the locking mechanism and determines the security level of the entire system.
| Type | Description | Common Use |
|---|---|---|
| Euro Profile Cylinder | The most common type, found in mortise and multipoint locks. | Residential and commercial doors |
| Oval Cylinder | Compact shape, often used in aluminum doors. | Office or glass doors |
| Keyed Alike / Master Key Cylinders | Allows one key to open multiple doors. | Hotels, offices, and buildings |
| Double Cylinder | Key-operated from both sides. | External entry doors |
| Thumb Turn Cylinder | Key on one side, thumb turn on the other. | Apartments and internal security doors |
Our door cylinders are made with brass, stainless steel, or zinc alloy and include anti-pick, anti-drill, and anti-bump features, ensuring professional-grade protection and long-term reliability.
Replacing your door cylinder is necessary in several situations:
Lost or stolen keys – to prevent unauthorized access.
Upgrading security – when switching to high-security or smart systems.
Worn-out keys or mechanism – causing difficulty in turning.
Changing tenants or staff – in property management or hotels.
Corrosion or malfunction – especially in outdoor or humid environments.
Our factory-produced cylinders are tested for over 100,000 key cycles, ensuring durability even in high-traffic areas.
Before you begin, gather these basic tools:
Screwdriver (usually a Phillips or flat-head)
Replacement door cylinder (same size as the existing one)
Measuring tape or ruler
New keys (provided with the new cylinder)
Tip: Always check that the replacement cylinder matches your door lock type and backset measurement to ensure proper fitting.
Begin by opening the door so that both sides of the lock are accessible. This makes it easier to remove and replace the cylinder without pressure from the latch.
Look for a long fixing screw on the side edge of the door, located at the same height as the cylinder. Use a screwdriver to remove it carefully. This screw holds the cylinder firmly in place.
Insert the key into the lock and turn it slightly (about 10–15 degrees) to align the cam (the rotating piece inside the cylinder) with the lock body.
When the cam aligns with the body, the cylinder can slide out smoothly.
If you feel resistance, adjust the key angle slightly.
Gently pull the cylinder out from the side of the door while keeping the key slightly turned. If it’s stuck, wiggle the key gently until it loosens and slides out.
Measure your old cylinder’s total length and each half (from the center screw hole to each end). Common Euro cylinder sizes include 60mm (30/30), 70mm (35/35), and 80mm (40/40).
Always match the new cylinder to these dimensions for a perfect fit.
| Total Length | Common Configuration | Suitable Door Type |
|---|---|---|
| 60mm | 30/30 | Standard wooden doors |
| 70mm | 35/35 | Steel or thicker doors |
| 80mm | 40/40 | High-security entrance doors |
| 90mm+ | 45/45 and above | Commercial and double-door systems |
Slide the new cylinder into the same position. Ensure the cam aligns correctly with the lock mechanism. Once it’s seated flush with the door face, insert the fixing screw and tighten it securely.
Before closing the door, insert the key and test the lock several times from both sides:
The key should turn smoothly.
The latch should retract and extend correctly.
The thumb turn (if included) should rotate freely.
If the movement feels tight, slightly loosen the fixing screw, adjust the cylinder position, and retighten.
Not all cylinders are equal — material, precision, and security level make a major difference in performance. As a B2B supplier, we help distributors, hotels, and builders choose the ideal model for their projects.
| Material | Characteristics | Best For |
|---|---|---|
| Brass | Corrosion-resistant, smooth operation | Residential or hotel doors |
| Stainless Steel | High-strength and anti-rust | Exterior or coastal projects |
| Zinc Alloy | Lightweight and economical | Interior or office doors |
Our high-security cylinders include:
Anti-drill steel pins for protection against forced entry.
Anti-pick and anti-bump mechanisms for enhanced safety.
Key control system that prevents unauthorized duplication.
Master key configurations for hotels and multi-unit buildings.
We offer finishes including satin nickel, polished chrome, antique brass, matte black, and gold PVD, matching modern architectural trends and door designs.
As a professional manufacturer, we combine engineering precision, high-quality materials, and OEM flexibility to deliver products that meet global standards and B2B expectations.
Tailor-made cylinder sizes, key systems, and branding for international clients.
Laser logo engraving and custom packaging available.
Full support for hotel and architectural projects requiring uniform key systems.
All our cylinders comply with EN1303, ANSI/BHMA, and ISO9001 certifications, ensuring international compatibility and export readiness.
Our factory utilizes:
CNC precision machining for exact dimensions.
Automated assembly for consistent quality.
100% cycle and torque testing before shipment.
These measures guarantee smooth key rotation, long service life, and dependable security in every cylinder we produce.
We supply to construction companies, hotel groups, and hardware distributors worldwide, offering:
Fast lead times
Competitive pricing
After-sales technical support
Sustainable production processes
Learning how to change the cylinder in a door lock is a straightforward process that greatly enhances your door’s functionality and safety. By following simple steps — removing the old core, measuring precisely, and installing a new one — you can restore smooth operation and upgrade security with minimal effort.
At our factory, we produce premium-quality door cylinders designed for precision, strength, and long-term reliability. With OEM customization, high-grade materials, and global certifications, we provide complete solutions for hotels, construction projects, and hardware distributors.
Whether you need standard euro cylinders or advanced high-security models, our door cylinders deliver the perfect combination of engineering excellence and professional performance — making every door safer and more dependable.
