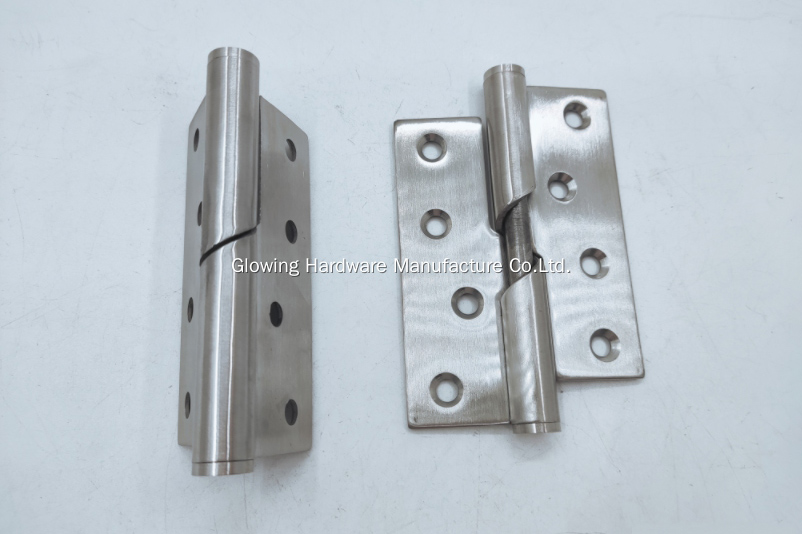

Lift Off Flag Hinge is a mechanical connection device that achieves quick disassembly and installation through structural design. Its core feature is the separate design of the blade and the base. Users can manually disassemble and assemble the hinge without tools, which greatly improves the efficiency of equipment maintenance and replacement. This product is widely used in industrial equipment, furniture manufacturing, automobile modification and other fields, and has become an innovative solution to the cumbersome problem of traditional hinge disassembly.

Lift Off Flag Hinge Parameters:

Product Features

Separate Design

The blade and the base are connected by a precision buckle or magnetic structure, and the user can manually separate or lock it without tools such as screwdrivers.

Application Scenario: Suitable for equipment that requires frequent panel replacement (such as industrial control cabinets) to reduce downtime.

High-strength material

Made of SUS304 or 201 stainless steel, it has corrosion resistance and high temperature resistance and is suitable for harsh environments.

Advantages: Extend service life and reduce maintenance costs.

Multiple sizes and surface treatments

Available in 4"x3"x3mm, 4"x3"x2.5mm and other specifications to meet different load requirements.

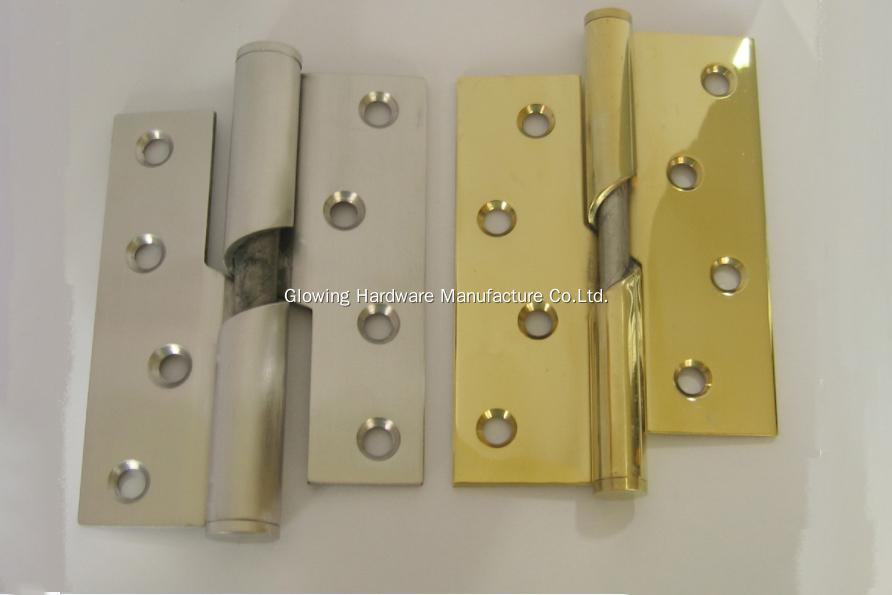

Surface treatments include polishing (SS), matte (PSS), sandblasting (BP), etc., taking into account both aesthetics and functionality.

Quick installation and removal

The snap-on design supports one-handed operation, and the installation time is shortened by more than 50% compared to traditional hinges.

Application scenarios: In car modification, the door panels can be quickly removed for interior upgrades.

Anti-falling safety mechanism

The built-in locking device prevents the blades from accidentally falling off, ensuring safe use.

Advantages: Avoid equipment damage or personal injury caused by hinge failure.

Application areas

1. Industrial equipment

Application scenarios: automated production lines, robot joints, medical equipment hatches, etc.

Problems solved: Traditional hinges require professional tools to disassemble and take a long time to repair; the split design allows non-professionals to quickly replace faulty parts and reduce downtime losses.

Case: After a food processing plant used this hinge, the equipment maintenance efficiency increased by 40%, and the annual downtime was reduced by 120 hours.

2. Furniture manufacturing

Application scenarios: cabinets, wardrobes, display cabinets and other furniture that require frequent cleaning or replacement of panels.

Problem solved: Traditional hinges require destructive operations to disassemble, while the split design allows non-destructive disassembly to protect the furniture surface.

Case: After a high-end cabinet brand adopted this hinge, the customer complaint rate dropped by 35% and the after-sales cost dropped by 20%.

3. Car modification

Application scenarios: hoods, trunks, doors and other parts that need to be quickly disassembled and assembled.

Problem solved: Traditional hinges require screws to fix, which is time-consuming to disassemble and easy to damage the paint surface; the split design allows non-destructive installation and supports personalized modification.

Case: After a modified car brand used this hinge, the modification efficiency increased by 60% and customer satisfaction reached 95%.

4. Building decoration

Application scenarios: glass doors, folding windows, movable partitions and other building structures that require flexible opening and closing.

Problem solved: Traditional hinges affect the beauty of buildings, while the split design can be installed in a hidden way to increase the freedom of space design.

Case: After a commercial complex adopted this hinge, the space utilization rate increased by 25% and the operating cost decreased by 15%.

5. Aerospace

Application scenarios: Aircraft doors, spacecraft equipment compartments, etc. require highly reliable connection components.

Solved problems: Traditional hinges are prone to failure in extreme environments, and the split design ensures safety through an anti-drop mechanism.

Case: After a spacecraft manufacturer adopted this hinge, the equipment failure rate dropped by 50% and the maintenance cost dropped by 40%.

Installation and maintenance guide

Installation steps

Surface cleaning: Make sure the installation surface is flat, oil-free, and free of debris.

Positioning mark: Mark the hinge installation position according to the design drawing.

Fix the base: Use screws to fix the base to the equipment or furniture.

Installing the blade: Align the blade with the base slot and press it gently to the locked position.

Function test: Open and close the hinge repeatedly to ensure that there is no jamming or abnormal sound.

Maintenance guide

Troubleshooting: If the hinge cannot be locked, check whether the buckle is deformed or damaged.

Disassembly method: Press the blade release button and lift the blade upward to separate.

Replacement parts: If the blade or base is damaged, the corresponding parts can be replaced separately.

Lubrication and maintenance: Apply special grease regularly to reduce wear.

FAQs

Q1: What is the maximum load of Lift Off Flag Hinge?

A1: The specific load needs to be selected according to the model. It is recommended that the load does not exceed 80% of the hinge rating to ensure safety.

Q2: Does it support customized services?

A2: Yes, the size, surface treatment and material can be customized according to customer needs.

Q3: What is the service life?

A3: Under normal use conditions, the service life can reach 5-10 years, depending on the use environment and frequency.

Q4: Does it require professional installation?

A4: No, ordinary users can complete installation and removal manually.

Q5: Is after-sales service provided?

A5: Provide 1-year warranty, lifetime technical support, and respond to customer needs within 24 hours.
